您當前的位置：首頁 >> 高速鋼、鈷高速鋼刀具 >> 拉刀 >> 各種拉刀 >> DUMONT >> DUMONT 帶墊片的高速鋼鍵槽推拉刀

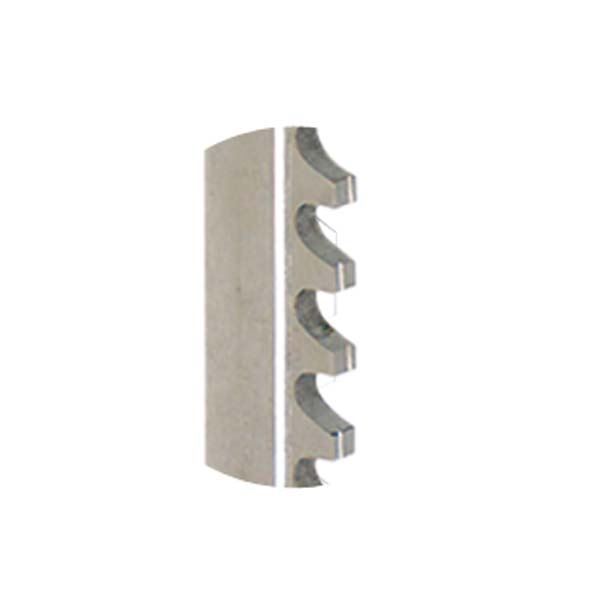

DUMONT 帶墊片的高速鋼鍵槽推拉刀

技術參數：
·高速鋼制造
·拉刀是坡形的，允許齒切削鍵槽至適當?shù)纳疃壬线f增
·可用于切削英制或公制尺寸的鍵槽
·拋光處理

DUMONT 帶墊片的高速鋼鍵槽推拉刀

應用：
·特殊的刀具設計用于在已經機械加工的孔中切削鍵槽
·典型地用于心軸壓床或液壓產生鍵槽
·特別適用于加工各種含鐵及不含鐵材料

特點：
·淬硬并磨削的齒在一側刀體上排列
·按尺寸均衡提供好的切削范圍和足夠的剛性

貨號	型號	拉刀尺寸	類型	尺寸	公差_英寸	需要墊片	重量	價格(1件起訂)			購買
								1	1	1
30-600-140		25mm	F	1" x 20-1/4"	.9832-.9852"	4	6.969 lbs.	6355.41	6355.41	6355.41
30-600-139		24mm	F	1" x 20-1/4"	.9439-.9459"	4	6.813 lbs.	6331.22	6331.22	6331.22
30-600-138		22mm	F	1" x 20-1/4"	.8651-.8671"	4	6.781 lbs.	6326.26	6326.26	6326.26
30-600-137		20mm	F	1" x 20-1/4"	.7864-.7884"	3	6.563 lbs.	6292.47	6292.47	6292.47
30-600-136		18mm	E	3/4" x 15-1/2"	.7078-.7095"	3	3.063 lbs.	3328.83	3328.83	3328.83
30-600-135		16mm	E	3/4" x 15-1/2"	.6290-.6307"	3	3 lbs.	3319.06	3319.06	3319.06
30-600-134		14mm	D	9/16" x 13-7/8"	.5503-.5520"	2	2.006 lbs.	2008.93	2008.93	2008.93
30-600-133		12mm	D	9/16" x 13-7/8"	.4716-.4733"	2	2.031 lbs.	2012.81	2012.81	2012.81
30-600-132		10mm	D	9/16" x 13-7/8"	.3930-.3944"	2	2.031 lbs.	2012.81	2012.81	2012.81
30-600-131		8mm	C	3/8" x 11-3/4"	.3143-.3157"	2	0.813 lbs.	1248.40	1248.40	1248.40
30-600-130		6mm	C	3/8" x 11-3/4"	.2356-.2368"	1	0.781 lbs.	1243.44	1243.44	1243.44
30-600-129		5mm	C	3/8" x 11-3/4"	.1963-.1974"	1	0.75 lbs.	1238.63	1238.63	1238.63
30-600-128		5mm	B1	1/4" x 6-3/4"	.1963-.1974"	1	0.219 lbs.	930.24	930.24	930.24
30-600-127		4mm	B1	1/4" x 6-3/4"	.1568-.1581"	1	0.219 lbs.	930.24	930.24	930.24
30-600-126		3mm	A	1/8" x 5"	.1176-.1186"	1	0.063 lbs.	755.34	755.34	755.34
30-600-125		2mm	A	1/8" x 5"	.0782-.0792"	0	0.063 lbs.	755.34	755.34	755.34
30-600-119		1"	F	1" x 20-1/4"	1.0015-1.0025"	7	7.4688 lbs.	6432.87	6432.87	6432.87
30-600-118		7/8"	F	1"x 20-1/4"	.8765-.8775"	6	5.0938 lbs.	6064.75	6064.75	6064.75
30-600-117		3/4"	E	3/4" x 15-1/2"	.7515-.7525"	5	3.3125 lbs.	3367.50	3367.50	3367.50
30-600-116		5/8"	E	3/4" x 15-1/2"	.6260-.6270"	4	3.125 lbs.	3338.44	3338.44	3338.44
30-600-115		1/2"	D	9/16" x 13-7/8"	.5006-.5016"	3	2.0938 lbs.	2022.54	2022.54	2022.54
30-600-114		7/16"	D	9/16"x 13-7/8"	.4380-.4390"	3	2.0313 lbs.	2012.86	2012.86	2012.86
30-600-113		3/8"	D	9/16" x 13-7/8"	.3755-.3765"	2	1.9375 lbs.	1998.32	1998.32	1998.32
30-600-112		5/16"	D	9/16" x 13-7/8"	.3127-.3137"	2	1.8438 lbs.	1983.79	1983.79	1983.79
30-600-111		3/8"	C	3/8" x 11-3/4"	.3755-.3765"	2	0.8125 lbs.	1248.32	1248.32	1248.32
30-600-110		5/16"	C	3/8" x 11-3/4"	.3127-.3137"	2	0.8125 lbs.	1248.32	1248.32	1248.32
30-600-109		1/4"	C	3/8" x 11-3/4"	.2502-.2512"	1	0.7813 lbs.	1243.48	1243.48	1243.48
30-600-108		3/16"	C	3/8" x 11-3/4"	.1877-.1887"	1	0.7188 lbs.	1233.79	1233.79	1233.79
30-600-107		3/16"	B	3/16" x 6-3/4"	.1877-.1887"	1	0.2188 lbs.	930.21	930.21	930.21
30-600-106		5/32"	B	3/16" x 6-3/4"	.1564-.1574"	1	0.1875 lbs.	925.36	925.36	925.36
30-600-105		1/8"	B	3/16" x 6-3/4"	.1252-.1262"	1	0.1875 lbs.	925.36	925.36	925.36
30-600-104		3/32"	B	3/16" x 6-3/4"	.0937-.0947"	0	0.1875 lbs.	925.36	925.36	925.36
30-600-103		1/8"	A	1/8" x 5"	.1252-.1262"	1	0.0938 lbs.	760.12	760.12	760.12
30-600-102		3/32"	A	1/8" x 5"	.0938-.0948"	0	0.0625 lbs.	755.27	755.27	755.27
30-600-101		1/16"	A	1/8" x 5"	.0625-.0635"	0	0.0625 lbs.	755.27	755.27	755.27
